Catrike Villager
The Villager brings together engineering and innovation into one easy to use machine. A high seat and stable platform mated to an adjustable frame provide a comfortable and confident ride. Avid disc brakes offer best in class stopping power and Ackermann steering geometry – a standard design feature on all Catrike models – keep course corrections smooth and stable. The Villager is ideal for adventures in your neighborhood and beyond.
.
Brakes Avid BB7 Disc Brakes
Brake Levers Catrike Locking Brake Levers
Front Derailleur Microshift Triple
Rear Derailleur SRAM GX 10 Speed
Shifters SRAM 500 TT Bar End Shifter
Crankset FSA Gossamer Pro Triple
Bottom Bracket FSA Road MegaExo
Chainrings 30/39/52
Chain Guard FSA Guard
Cassette SRAM 11/36 10 Speed
Chain KMC
Idler TerraCycle Sport Power Idler 15T
Headsets FSA Zero Stack
Front Tires 406 Schwalbe Marathon Racer
Rear Tire 406 Schwalbe Marathon Racer
*All components are subject to change with an equivalent substitute based on availability
Villager Geometry
| US | metric | ||
Wheel Base | 38 | in | 965 | mm |
Wheel Track | 31 | in | 787 | mm |
Total Width | 34.5 | in | 876 | mm |
Total Length** | 69 | in | 1753 | mm |
Seat Angle | 47/58 | deg |
|
|
Weight | 34 | lb | 15,5 | Kg |
Seat Height | 12.5 | in | 318 | mm |
Seat Width | 14 | in | 356 | mm |
BB Height** | 17 | in | 432 | mm |
Ground Clearance | 5.5 | in | 140 | mm |
Total Height | 28.5 | in | 724 | mm |
Height w/ Seat Folded | 24.5 | in | 620 | mm |
Turning Circle | 16 | ft | 4,8 | m |
Turning Radius | 8 | ft | 2,4 | m |
Rider Weight Limit | 275 | lb | 125 | Kg |
Rider X-Seam Range | 39/46 | in | 99/117 | cm |

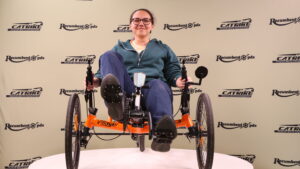

Villager - Atomic Orange
Villager is the most popular Catrike. Its wide seat with adjustable four position seatback is easy to enter and exit. The 20 inch rear drive wheel is ideal for hill climbing.
It’s wide cockpit is ideal for easily entering and exiting the trike. RPDX Mechanics installed shorter cranks (ideal for shorter people!). Heel Support pedals and Assist Arms are an easy add for your test ride.
The Villager in all its glory!!!
Villager Adaptive - Lava Red
Starting with the super-popular Villager, RPDX mechanics added
- Heel Support Pedals
- Internally Geared Hub
- Single Lever Hydraulic Brakes
For folks living with stroke-related hemiparesis, braking and shifting controls can be on left or right side. We can also add a can holder and stand up assist arms
Click the Enlarge Button to see the Villager in all its glory (it’s a large file, so it may take a few seconds to load. You’ll be rewarded!)
Villager Bosch - Electric Blue
RPDX mechanics added a Bosch Active Line Plus motor kit, Heel Support Pedals and T-Cycle Assist Arms
Click the Enlarge Button to see the Villager in all its glory (it’s a large file, so it may take a few seconds to load. You’ll be rewarded!)
Villager Bafang - Firefly Yellow
RPDX mechanics added a Bafang 500W Motor, Heel Support Pedals, Cane Holder, T-Cycle Assist Arms and that adorable seat back bag!
The Villager in all its glory (it’s a large file, so it may take a few seconds to load. You’ll be rewarded!)
Standard Features
⦁ Padded seat
⦁ Ergonomic adjustable seat back
⦁ Padded wrist rests
⦁ Rear Fender
⦁ Flag Mount & Flag
⦁ Mirrycle Rear View Mirror
⦁ Multi Purpose Clipless Pedals
⦁ Computer Sensor Mount
⦁ No Brake Steer
⦁ Self Centering
⦁ Ackermann Steering Compensation
⦁ Structural Front Boom
⦁ Quick-Release Indexing Boom Clamp
⦁ Aluminum Rod Ends
⦁ Low Friction PTFE Flared Chain Tube
